Personal Mobility Aid
Lightweight and Extremely Durable
The Smart Escort Type D05 is composed of a very durable aluminium alloy,giving it 20km with dual batteries of only 19kg, but being capable of handling passengers weighing 120kg. It can travel 20km with single Litium Battery.
  • Safety and User friendly
  • Extremely Economical
  • Enjoy Independence
  • Easy and simple operation
  • Enhanced mobility
  • Proven Reliability
  • Foldable and compact
  • Light weight 19kg

Reliable quality control and safety based on ISO9001 &ISO13485

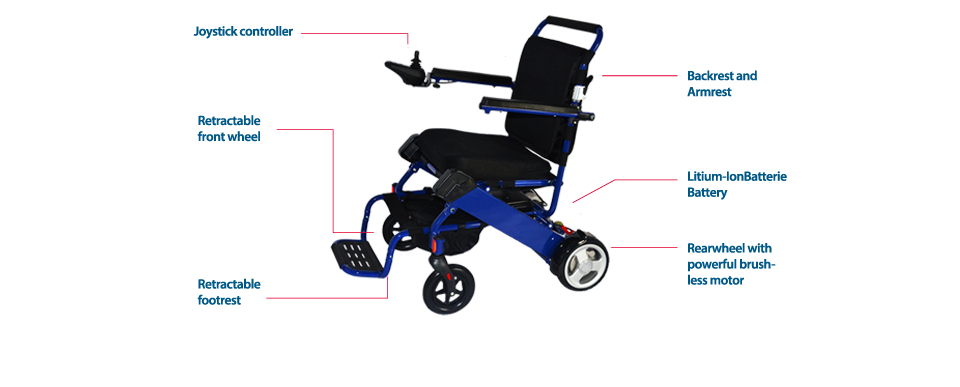

Features Features - Smart Escort
  • Holds in just 5 sec. And very compact for storage at home and vehicle
  • Smart Escort travels up to 20km with single battery(40km with dual batteries)
  • Smart Escort supports passengers up to 120kg.
  • Minimum turning radius of 71cm.
  • Wheel material of PU and rubber.
  • Powerful brushless motor can climb up to 12 degree.
  • Detachable seat cushion and backrest for easy cleaning.
  • It costs less than conventional electric wheelchairs.
  • Frame Material : 7003 aerospace titanium-aluminium alloy.
  • 6 various colours are available

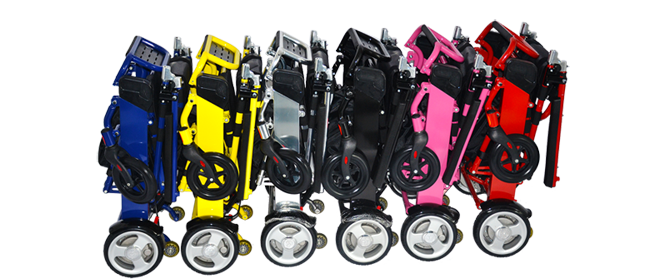

    6 various colours are available

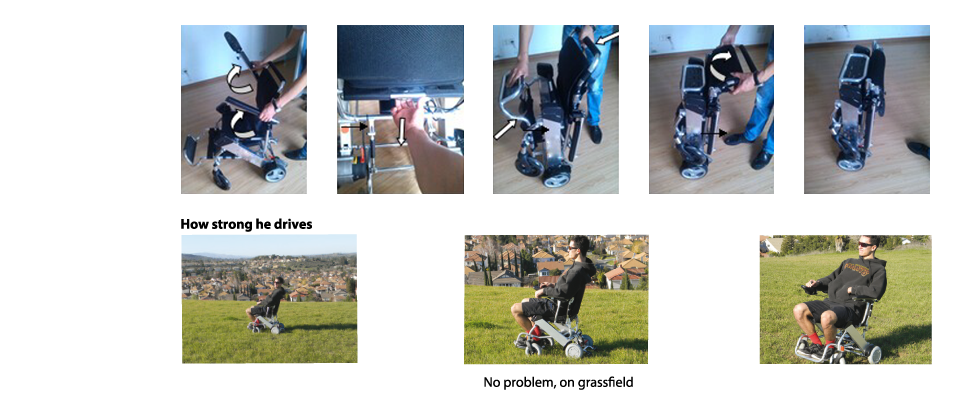

How to fold How to fold - Smart Escort
Type D05
19Kg ( 21kg with single battery/
23kg with dual batteries)
Weight Capacity 120kg
Travel distance 20km
Min.turn radius 80cm
Incline Max. 12 degree
Frame Titanium-aluminium alloy
Material of wheel Rubber and PU
Motor Brushless DC motor
Battery charger Input 100-240 VAC
  DC Output 24V,2A
Long lasting Li-ion battery
Q1. Can you switch the joystick unit between right arm and left arm?
How soon can it be done to switch joystick unit?
A: It's ok, you can change the right and left easily, you only need to do is release the screw under the joystick, then change the direction.
Q2. What is the typical charging time for the 1st time and 2nd time and on?
A: It takes about 24 hours for the first time to full charge and about 6-8 hours from the second time.
Q3. Do you have heavy duty type which is usable for person who weighs more than 120 kg? If you have, how much is the max.weight?
A: Yes, we have type D09 model to recommend to you, the max. load capacity is 180kg.
Q4. Do you have carrier cover for the chair for transportation when folded?
A: Yes, we have travel bag which can be used when D05 is folded.
Q5. Is D05 waterproof? Can D05 be used under rain?
A: The wheelchair frame is Titanium-aluminum alloy material, it's water-proof, it will not get rusted, about the electric connection place, the user should take some care, don't let the rain flow inside. This means: D05 can not be used under rainy or snowing weather condition.
